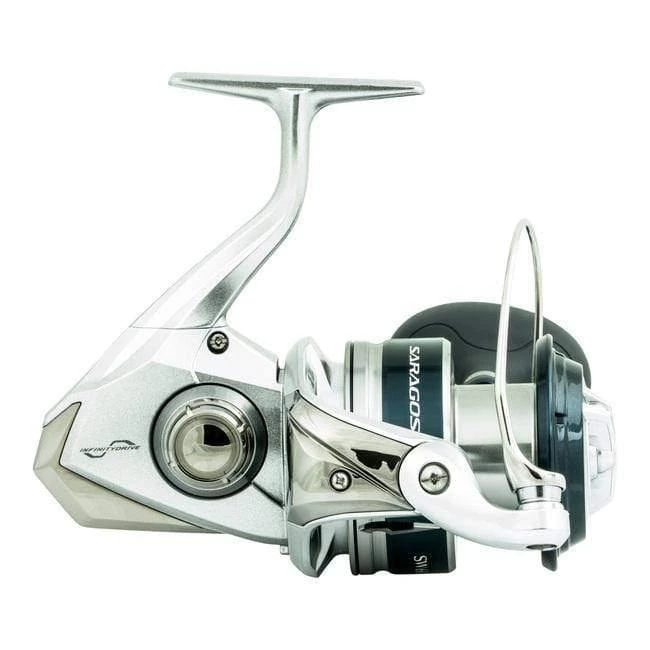

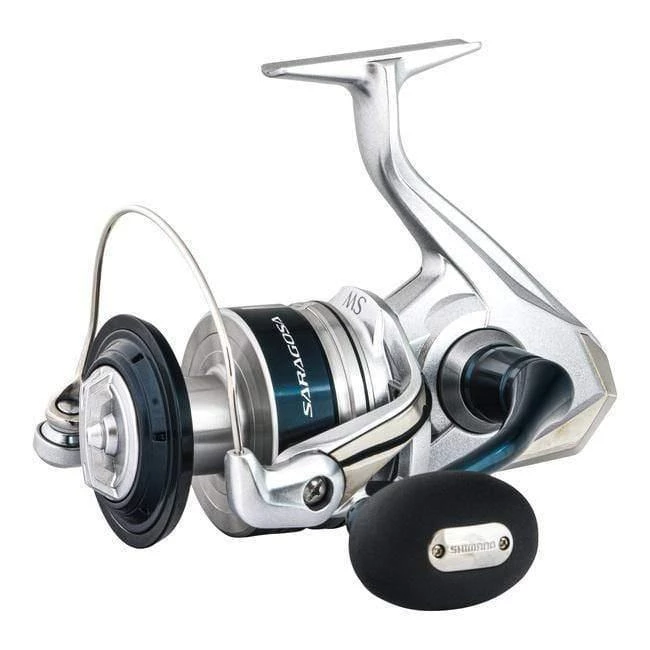

Shimano | Saltwater Spinning | Saragosa SW A Reel New Series

A true glutton for punishment, the legacy of the versatile Saragosa SW starts a new chapter in 2020 with enhanced capabilities and features to dominate the saltwater realm. The Saragosa SW now features Infinity Drive Technology and increases the reel’s winding torque under load compared to its predecessor to give anglers a distinct advantage over hard fighting game fish. Combined with a battle-tested rigid HAGANE Body that won’t flex under immense loads and the HAGANE Gear to create eternally smooth reeling, the capabilities of the Saragosa SW make it a thoroughbred workhorse among saltwater spinning reels. Benefiting from an IPX8-rated waterproof body, Saragosa SW also features a waterproof Cross Carbon drag and X-Protect for high-level water resistance to create long-lasting durability without sacrificing performance. No matter whether anglers are fishing inshore or offshore, jigging for bottom fish or casting baits at tailing fish, they can count on — just like they always have — the Saragosa SW to stay smooth no matter the conditions and perform when needed most. The bar is raised for saltwater spinning reels.

FEATURE

• Two New Sizes for 2020: SW14000 and SW18000
• Infinity Drive
• X-Protect
• IPX8 Waterproof Body
• HAGANE Gear
• Cross Carbon Drag
• Propulsion Line Management System
• X-Ship
• One-Piece Bail
• S A-RB
• HAGANE Body
• Waterproof Drag
• X-Shield
• X-Tough Drag

SPECIFICATION

Model	SRG10000 SWAPG	SRG14000 SWAXG	SRG18000 SWAHG
Max Drag (lb)	33	33	44
Line Retrieve Per Crank	40	53	51
Wt. (oz)	24.3	24.7	32.3
Powerpro Line Cap. (lb/yd)	50/360 65/290 80/215	50/400 65/315 80/240	50/600 65/440 80/360
Gear Ratio	4.9:1	6.2:1	5.7:1
Mono Line Cap. (lb/yd)	16/320 20/220 25/175	16/360 20/260 25/190	20/415 25/340 30/280
Bearings	5+1	5+1	6+1

Model	SRG20000 SWAPG	SRG25000 SWA
Max Drag (lb)	44	44
Line Retrieve Per Crank	41	45
Wt. (oz)	33	33.9
Powerpro Line Cap. (lb/yd)	65/90 80/400 100/340	65/630 80/520 100/440
Gear Ratio	4.4:1	4.4:1
Mono Line Cap. (lb/yd)	20/460 25/380 30/320	20/570 25/490 30/360
Bearings	6+1	6+1

Model	SRG5000 SWAXG	SRG6000 SWAHG	SRG8000 SWAHG
Max Drag (lb)	22	22	35
Line Retrieve Per Crank	41	41	42
Wt. (oz)	15.9	16	23.8
Powerpro Line Cap. (lb/yd)	20/245 30/225 40/175	30/295 50/195 65/140	40/340 50/265 65/215
Gear Ratio	6.2:1	5.7:1	5.6:1
Mono Line Cap. (lb/yd)	10/240 12/195 14/165	12/265 16/170 20/120	14/300 16/250 20/185
Bearings	5+1	5+1	5+1
