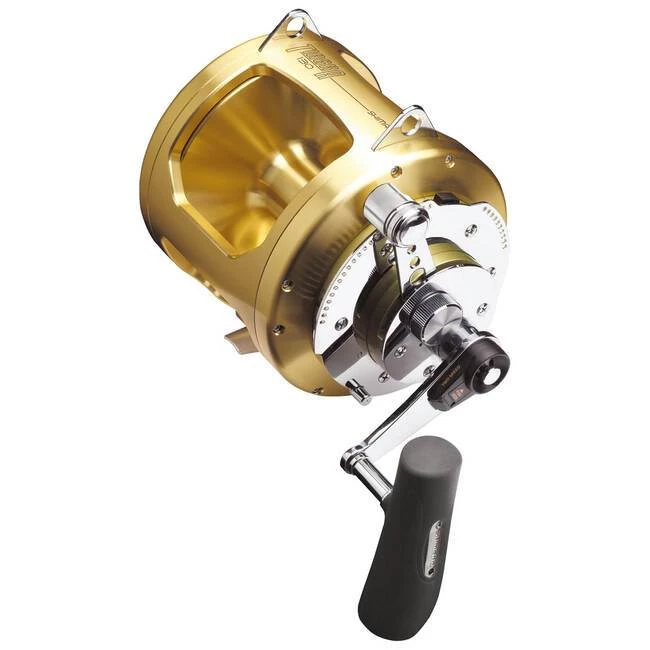

Shimano | Conventional | Tiagra A Trolling 2-Speed Lever Drag Reels

With a hydrothermal drag and pre-lubricated drag washer impervious to saltwater, Tiagra reels remain in perfect control of the biggest, fastest game fish on the planet. The single-piece aircraft aluminum frame is machine cut so it won’t distort under pressure of a big fish, the heavy-duty stainless steel two-speed gears continuously mesh, and at 89 dB, the ratchet is loud enough to wake the sleepiest crew.

FEATURE

• Series: Tiagra
• Family Type:  Lever Drag
• Key Feature:  Cold-Forge Aluminum Construction
• Maximum Drag (lb): 33-99 (lb)
• Retrieve Per Crank Range (in): 36/41 – 15/22
• Warranty: 10 Years



SPECIFICATIONS

Model	TI16	TI20A	TI30WLRSA
Max Drag	31	26	35
Line Retrieve Per Crank	36″ 16″	41″ 18″	41″ 18″
Wt.	37.4	49.7	55.6
Powerpro Line Cap. (lb/yd)	50/1210 65/680 80/520	50/1225 65/720 80/525	65/1435 80/1180 100/865
Gear Ratio (Hi / Low)	3.9:1 1.7:1	3.9:1 1.7:1	3.9:1 1.7:1
Mono Line Cap. (lb/yd)	16/980 20/670 30/430	20/690 30/470	30/935 50/570
Bearings	6	4	4





Model	TI50A	TI50WA	TI50WLRSA
Max Drag	26	26	40
Line Retrieve Per Crank	37″  15″	37″  15″	37″  15″
Wt.	83.4	86.2	86.2
Powerpro Line Cap. (lb/yd)	80/1135 100/930 150/865	80/1575 100/1235 150/1180	80/1575 100/1235 150/1180
Gear Ratio (Hi / Low)	3.1:1 1.3:1	3.1:1 1.3:1	3.1:1 1.3:1
Mono Line Cap. (lb/yd)	50/600	50/850	80/550
Bearings	4	4	4

Model	TI80WA
Max Drag	40
Line Retrieve Per Crank	37″  15″
Wt.	115.2
Powerpro Line Cap. (lb/yd)	100/2445 150/2365 200/1920
Gear Ratio (Hi / Low)	2.5:1 1.3:1
Mono Line Cap. (lb/yd)	80/950
Bearings	4

TECHNOLOGY

• Hagane Body

• ARB

• CF Aluminum Cold Forge Spool

• Metal series
