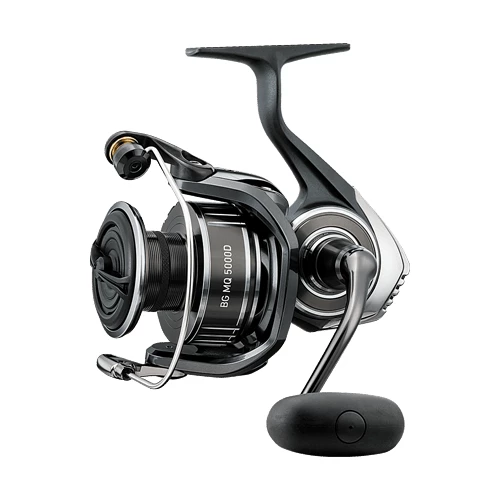

Daiwa BG MQ Saltwater Spinning Reel

Daiwa is proud to introduce the next generation of BG spinning reels to saltwater anglers of all stripes, this time with a one-piece Monocoque aluminium body. Light and strong like a Formula One racing car, the reels are lighter and stronger through the use of monocoque body technology.

With the Monocoque design, the reel body serves as a stiff and distortion-proof frame, which is handy and compact at the same time. If offers more rigidity, more stability, and bigger gears. The Water Resistance is superb and Monocoque body offers more power and torque as a result.



Feature

• ALUMINIUM BODY

  Lightweight and incredibly strong, aluminium allows strength and weightlessness to be achieved without the cost and corrosion issues of other metals.

• ATD DRAG

  Daiwa’s Automatic Tournament Drag uses an improved drag grease that exhibits a low viscosity at rest, yet becomes more viscous immediately after drag startup. This reduces initial drag start-up inertia and combined with the structural changes of the ATD Drag System results in a smoother drag from the initial hook up.

• DIGI GEAR

  Daiwa’s first generation of digitally engineered gear design ensures a perfect mesh between the ultra-tough stainless-steel drive gear and pinion gears for optimized speed, power, durability and smoothness.

• MONOCOQUE (MQ)

  A one-piece frame eliminates the use of traditional two-piece body & side plate construction. A single piece body utilises a screw-in engine plate to house the main gear, reducing flex and twist under load creating a sealed mechanism. The elimination of the side plate also has also allowed for a more compact body design. MQ technology not only makes reels stronger & better sealed, but also more compact.



SPECIFICATIONS

Model	BGMQ 2500D-H	BGMQ 3000D-XH	BGMQ 4000D-XH
Bearing	6BB + 1	6BB + 1	6BB + 1
Gear Ratio	5.7:1	6.2:1	6.2:1
Line Per Handle Turn	21.5′	36.8′	39.1′
Wt. (oz)	8.3	9.3	10.1
Mono Line Cap. (lb/yd)	8/240 10/210	10/280 12/220	10/360 14/250
J-Braid Line Cap. (lb/yd)	10/250 15/185	15/250 20/220	20/280 30/200
Drag Max (lb)	22	22	26.4





Model	BGMQ 5000D-H	BGMQ 6000D-H	BGMQ 8000-H
Bearing	6BB + 1	6BB + 1	6BB + 1
Gear Ratio	5.7:1	5.7:1	5.7:1
Line Per Handle Turn	37.8′	39.9′	43.4′
Wt. (oz)	15.3	15.2	22.4
Mono Line Cap. (lb/yd)	14/280 20/180	14/340 20/270	16/330 20/280
J-Braid Line Cap. (lb/yd)	30/230 40/160	30/320 40/240	40/330 50/280
Drag Max (lb)	26.4	26.4	33.1



Model	BGMQ10000-H	BGMQ14000-H
Bearing	6BB + 1	6BB + 1
Gear Ratio	5.7:1	5.7:1
Line Per Handle Turn	46.2′	48.3′
Wt. (oz)	22.8	22.6
Mono Line Cap. (lb/yd)	40/330 50/280	25/330 35/280
J-Braid Line Cap. (lb/yd)	50/330 65/280	65/330 80/280
Drag Max (lb)	33.1	33.1
